Thông tin sản phẩm

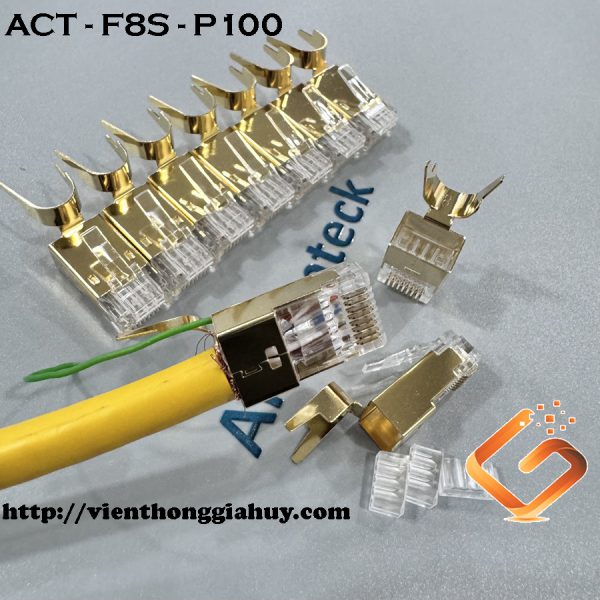

Đầu bấm mạng CAT8 chống nhiễu FTP, SFTP, SSTP ACT-F8S-P100
About this item
- ANCOMTECK CAT8 RJ45 Crimp Plug is suitable CAT8 S-STP/S-FTP Solid/Stranded Lan Cable Use.
- RJ45, 8P8C-F, STP 2 layer, 1.4mm wire hole with cable clip, 2 piece, Plug insertion force 2000, meet ISO/IEC 11801: (Solid Conductor)
- Conductor: Material / Size Bare copper / 23AWG,
- Color Code: Pair 1: Blue & White, Pair 2: Orange & White, Pair 3: Green & White, Pair 4: Brown & White, Shield: Aluminum-mylar tape and Drain wire(tinned copper conductor), coverage 40% tinned copper braid Jacket: LSZH (low-smoke & non-halogen) Min. Avg. Thickness: 0.585 mm; Min. Thickness: 0.458 mm, Approximate O.D.: 8.0 mm +/- 0.3mm
- Electric: Characteristic Impedance(Zo): 85～115Ω (1～600 MHz), DC. Resistance Capacitance Unbalance: 2％ Pair-to-Ground Capacitance Unbalance: 330 pF/100M Max Conductor Resistance: 7.32Ω/ 100M 20℃ Max Mutual Capacitance: 5600 pF/100m Max Spark Test: 2.5KV, ROHS Compliant,
These Cat 8 modular plugs are designed to work with solid & stranded shielded ethernet cabling. These plugs provide a high quality solutions for terminating your future-proof network. They are shielded providing you protection from EMI.
Features:
- Shielded for Protection from EMI
- Strong polycarbonate for durability
- Compatible withCat 8 and Cat 7A cable
- 50u Gold Plated Conductors
- Fits into any standard ethernet port
- 8P8C: 8 Position 8 Contact
- Three prong contacts fit solid & stranded wire
- UL & RoHS Certified for safety compliance
- Bag of 100
Important Note: You must use our large OD Cat 8 RJ-45 Crimping Tool for these plugs. A standard RJ-45 Crimper will not work with these modular plugs. These plugs have been tested to work with our Ancomteck Cat 8 Cable. Please check specifications prior to using with other cable.
Type: RJ45 Plug
Housing Material: Polycarbonate, UL 94V-0 and UL 94V-2
Gold Plating: 50u
Wire Guide: Cat7A or 8 CMR/CMP Solid or Stranded Cable
Compatible With: Cat 8 or 7A CMR/CMP Solid or Stranded Cable
RoHS Compliant: Yes
Cable Compatibility OD: 7.7mm to 8.0mm
Shielded: Yes
Insulation Compatibility O.D.: 1.3mm to 1.5mm
Pins: 8P8C
Housing Material: Polycarbonate, UL 94V-0 and UL 94V-2
Gold Plating: 50u
Wire Guide: Cat7A or 8 CMR/CMP Solid or Stranded Cable
Compatible With: Cat 8 or 7A CMR/CMP Solid or Stranded Cable
RoHS Compliant: Yes
Cable Compatibility OD: 7.7mm to 8.0mm
Shielded: Yes
Insulation Compatibility O.D.: 1.3mm to 1.5mm
Pins: 8P8C
Operating Temp: -10°C to 60°C
Để đạt chuẩn bạn nên sử dụng dây cáp CAT8 của hãng ANCOMTEK
